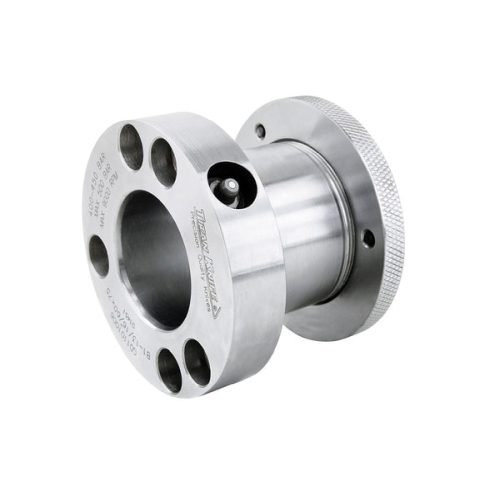

Global Tooling B:1-13/16/65-185T B: 1-13/16" Bore - 65 Shank - 150 Usable - 185 OAL -- Titan Hydro-Lock Sleeve

SKU: B:1-13/16/65-185T
Price:
$713.31

Qty: - +

Global Tooling B:1-13/16/65-185T B: 1-13/16" Bore - 65 Shank - 150 Usable - 185 OAL -- Titan Hydro-Lock Sleeve

Hydro-Sleeve Style - B
Bore Diameter (D) - 1-13/16"
Shank Diameter (D1) - 65 mm
Flange and Nut Diameter (D2 and D3) - 98 mm
Bolt Circle and Nut Diameter (D4 and D7) - 80 mm
Bolt Couter-Bore Depth (H) - 9 mm
Overall Length (L) - 185 mm
Usable Capacity (L1) - 150 mm
Shank Length (L2) - 165 mm
Brand - Titan Knife

High precision, lower cost solution for centering insert cutterheads, spiral heads, and saw blades on production moulders, tenoners, and rip saws. CNC machined from high strength alloy steel for long wear life. Titan sleeves are dimensional matches to the popular ETP ™ brand, and use a welded sleeve design. Call for custom size sleeves made to meet your special requirements.

This sleeve cannot ship USPS Priority Mail. Please choose from other shipping options when ordering.
