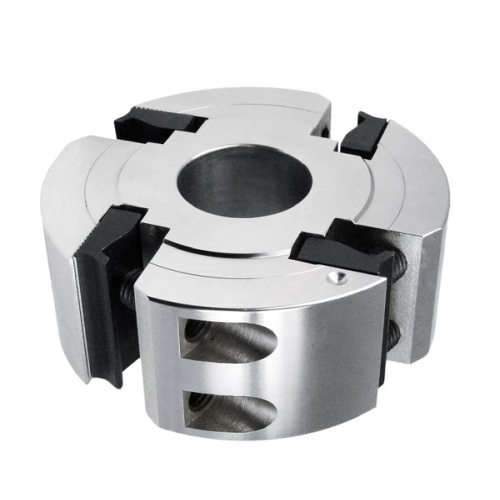

Global Tooling MH122-4-180-12 122OD x 180mm Length - Straight Bore - Single Hook Moulder Cutterhead - 4 Knife

SKU: MH122-4-180-12
Price:
$776.22

Qty: - +

Global Tooling MH122-4-180-12 122OD x 180mm Length - Straight Bore - Single Hook Moulder Cutterhead - 4 Knife

Outer Diameter - 122 mm (4.8")
Cutting Length - 180 mm (7.08")
Bore - 40 mm or 1-1/2" (Choose One)
Corrugated Knife Pockets - 4
Cutting Angle (Hook) - 12 degree or 20 degree (Choose One)
Brand - Titan Knife

Note: Not all single hook heads are stocked regularly and may require a 4 week lead time.


Weinig, Wadkin, SCMI, IIDA, Leadermac, Woodmizer, Silver, and other Mid-Sized Moulders:
The S122 head line is designed for use on most European & Asian imported molders. These use industry standard features and metric hardware, plus added features not offered by the German tool makers such as a high alloy tool steel body for greater tool life and deeper knife pockets for wider steel to be used for additional resharpenings. Knife pockets accept from 3/16" thick steel up to 10mm thick corg. steel. All cutterheads are precision CNC machined from high strength hardened alloy steel and designed to operate at speeds up to 9,000 rpm. Molder cutter heads are made to exceed the most stringent European OEM standards allowing you to produce smooth material finish with years of trouble free use. Knives and filler wedges sold separately.

This head cannot ship USPS Priority Mail. Please choose from other shipping options when ordering.
