Global Tooling MH100-4-80-12 100OD x 80mm Length x 1-1/4" Straight Bore - Single Hook Moulder Cutterhead - 4 Knife

SKU: MH100-4-80-12
Price:
$406.31

Qty: - +

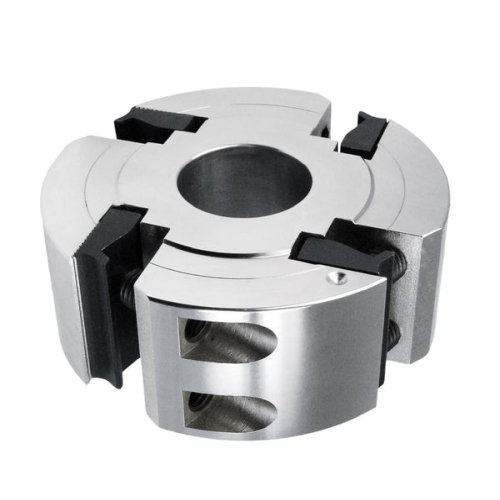

Global Tooling MH100-4-80-12 100OD x 80mm Length x 1-1/4" Straight Bore - Single Hook Moulder Cutterhead - 4 Knife

Outer Diameter - 100 mm (4")
Cutting Length - 80 mm (3.15")
Bore - 1-1/4"
Corrugated Knife Pockets - 4
Cutting Angle (Hook) - 12 degree or 20 degree (Choose One)
Brand - Titan Knife

Note: Not all single hook heads are stocked regularly and may require a 4 week lead time.


Shapers, Paulson, XL, and Import Brand Moulders:
The S100 MTO head line is designed for spindle shapers and most smaller non-jointed molders with the flexibility to use corrugated knife steel with high rpm rotation. Bore T-bushings available for smaller shapers with 1" diameter spindles. All cutterheads are precision CNC machined from high strength hardened alloy steel and designed to operate at speeds up to 9,000 rpm. Molder cutter heads are made to exceed the most stringent European OEM standards allowing you to produce smooth material finish with years of trouble free use. Knives and filler wedges sold separately.
