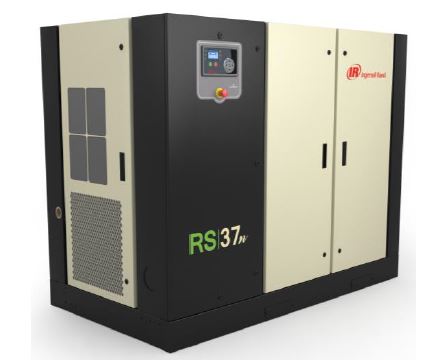

Rotary Screw Air Compressor RS37n (50 HP) Variable Speed Air Cooled TAS (Total Air System)

Product Description:
Ingersoll Rand Next Generation R-Series Oil-Flooded, Variable Speed Rotary Screw Air Compressors
offer multiple advantages that can improve your business’s productivity and profitability.
Industry-leading airend enhancements deliver what matters to you: world-class performance and
exceptional reliability. An intelligent controller ensures your Next Generation R-Series air
compressor optimizes operational parameters to enhance productivity.

Key Features & Benefits:
• All new airend: Advanced gear design, optimized rotor profiles & low friction bearing
arrangements aid in delivering Best in class capacity with World class efficiency all while
ensuring maximum reliability
• Progressive Adaptive Control™ (PAC™) Protection: An integrated, intelligent system that
continuously monitors key operating parameters and adapts to prevent unexpected downtime
• V-Shield™ Technology: A totally integrated, leak-free design using long-life metal-flex hoses and
superior fluroelastomer O ring seals for repeatable leak-free connections
• Free Floating Cooling System: Significantly improves reliability and serviceability with use of
a Side by Side design with a floating mount allowing the exchangers to expand and contract
• Xe-Series Controller: Xe-Series controllers feature built in web page control and automated email
notifications all packaged in an intuitive, high resolution color display
• TAS Integrated Dryer: Fully integrated filtration and dryer provide class leading standard 1.5.1
ISO 8573-1:2010 air quality

Technical Information:

Available Flow (Capacity):
• 231 cfm @ 100 psig
• 217 cfm @ 115 psig
• 206 cfm @ 125 psig
Weight: 2414 lbs
Compressed air outlet size: 1.5'' NPT
Condensate drain outlet size: 0.25”
Dimensions – Facing control panel (L x W x H): 76” x 42” x 60”
Sound Level per ISO 2151 Standard
• Aircooled 69 dBA
